Opcode Format | Mnemonic | Description |
01DDDSSS | MOV | The MOV16 mnemonic is used to move a 16-bit long General Purpose Register value through the Address Bus to another 16-bit General Purpose Register. |
Bits | Description |
DDD | Destination Register:
|
SSS | Source Register:
|

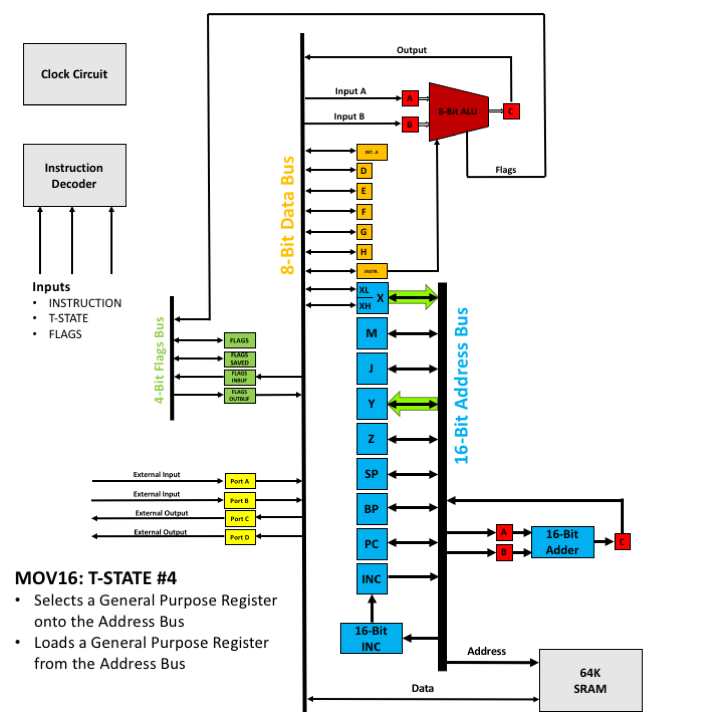

The following animation shows how the MOV16 opcode is executed physically on the CPU.
Downloads (licensed under CC BY-NC 3.0):
- MOV16: Destination Register Schematics – PDF (273 downloads)
- MOV16: Destination Register Stripboard (160x100mm) - PDF (265 downloads)
- MOV16: Eagle 7.5.0 Destination Register Schematics (213 downloads)
- MOV16: Eagle 7.5.0 Destination Register Stripboard (160x100mm) (236 downloads)
- MOV16: Source Register Schematics – PDF (271 downloads)
- MOV16: Source Register Stripboard (160x100mm) - PDF (268 downloads)
- MOV16: Eagle 7.5.0 Source Register Schematics (222 downloads)
- MOV16: Eagle 7.5.0 Source Register Stripboard (160x100mm) (227 downloads)
