Opcode Format | Mnemonic | Description |
10010DDD | LOAD | The LOAD mnemonic is used to load a 8-bit long value from the SRAM memory into a General Purpose Register. The 16-bit long memory address is taken from the M Register. |
Bits | Description |
DDD | Destination Register.
|

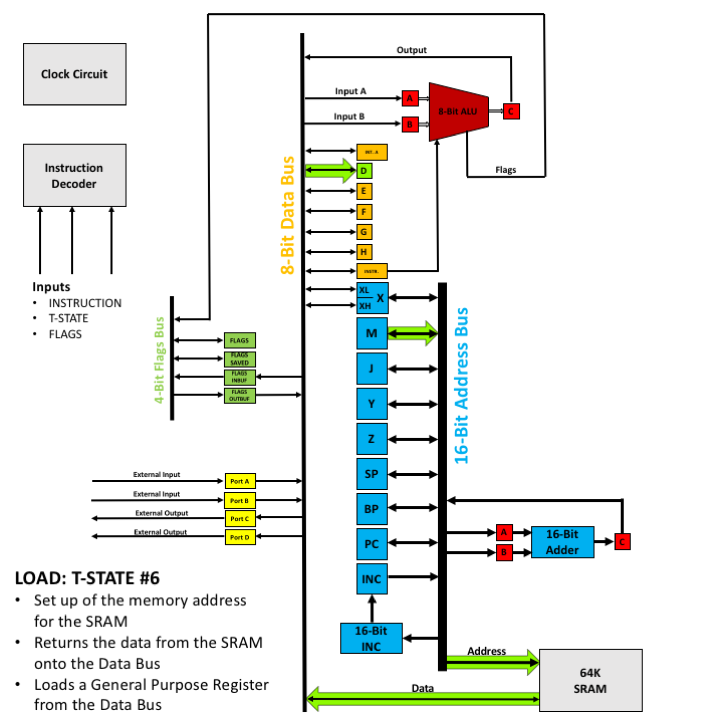

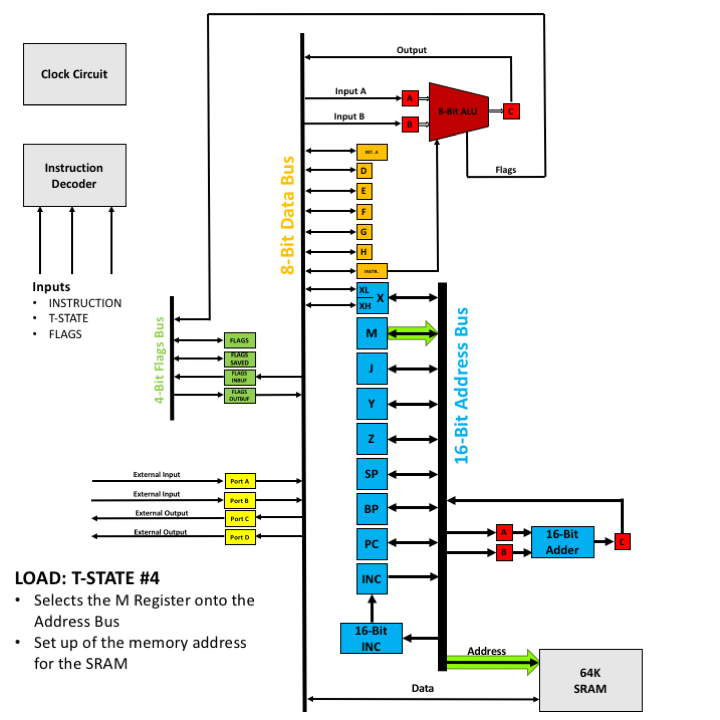

The following animation shows how the LOAD opcode is executed physically on the CPU.
Downloads (licensed under CC BY-NC 3.0):
- LOAD: Schematics – PDF (415 downloads)
- LOAD: Stripboard (160x100mm) – PDF (363 downloads)
- LOAD: Eagle 7.5.0 Schematics (310 downloads)
- LOAD: Eagle 7.5.0 Stripboard (160x100mm) (330 downloads)
- LOAD: Destination Register Schematics – PDF (358 downloads)
- LOAD: Destination Register Stripboard (160x100mm) – PDF (343 downloads)
- LOAD: Eagle 7.5.0 Destination Register Schematics (305 downloads)
- LOAD: Eagle 7.5.0 Destination Register Stripboard (160x100mm) (295 downloads)
